Medara
HMIS

Designing a hospital management system around clinical workflow instead of database structure.

Problem: Hospital software structured around database tables forces clinical staff to switch screens constantly during high-stress ward shifts.
My role: Workflow research, 12-module IA, clinical design system, and high-fidelity UI specs; production engineering with the TechFrien team.
Timeline: Apr 2026 – Jun 2026 · 8 weeks
Outcome: Standardized a longitudinal patient record reducing OPD encounter creation to 3 clicks in high-fidelity prototype.
Status: Prototype on Figma ↗

01Context

A Hospital Management Information System (HMIS) is the digital backbone of a healthcare institution — coordinating patient registration, doctor consultations, IPD admissions, bed occupancy, pharmacy dispensing, billing, and clinical administration across every department.

Medara is TechFrien’s flagship connected healthcare suite: twelve modules operating on a single longitudinal patient record, engineered for Indian hospitals, clinics, and nursing homes. This case study covers the core product design — from daily operational command to granular clinical encounters.

Working assumption, drawn from published HMIS product documentation and demo walkthroughs rather than from fieldwork: most systems are structured department-by-department, which pushes staff into re-entering the same patient across siloed screens. Validating this with clinical staff is the first item in “what I would do next” — until then it is a premise, and I have designed against it as one. Medara was conceived to invert this model: one connected patient record, accessible seamlessly by every department across the entire lifecycle of a shift.

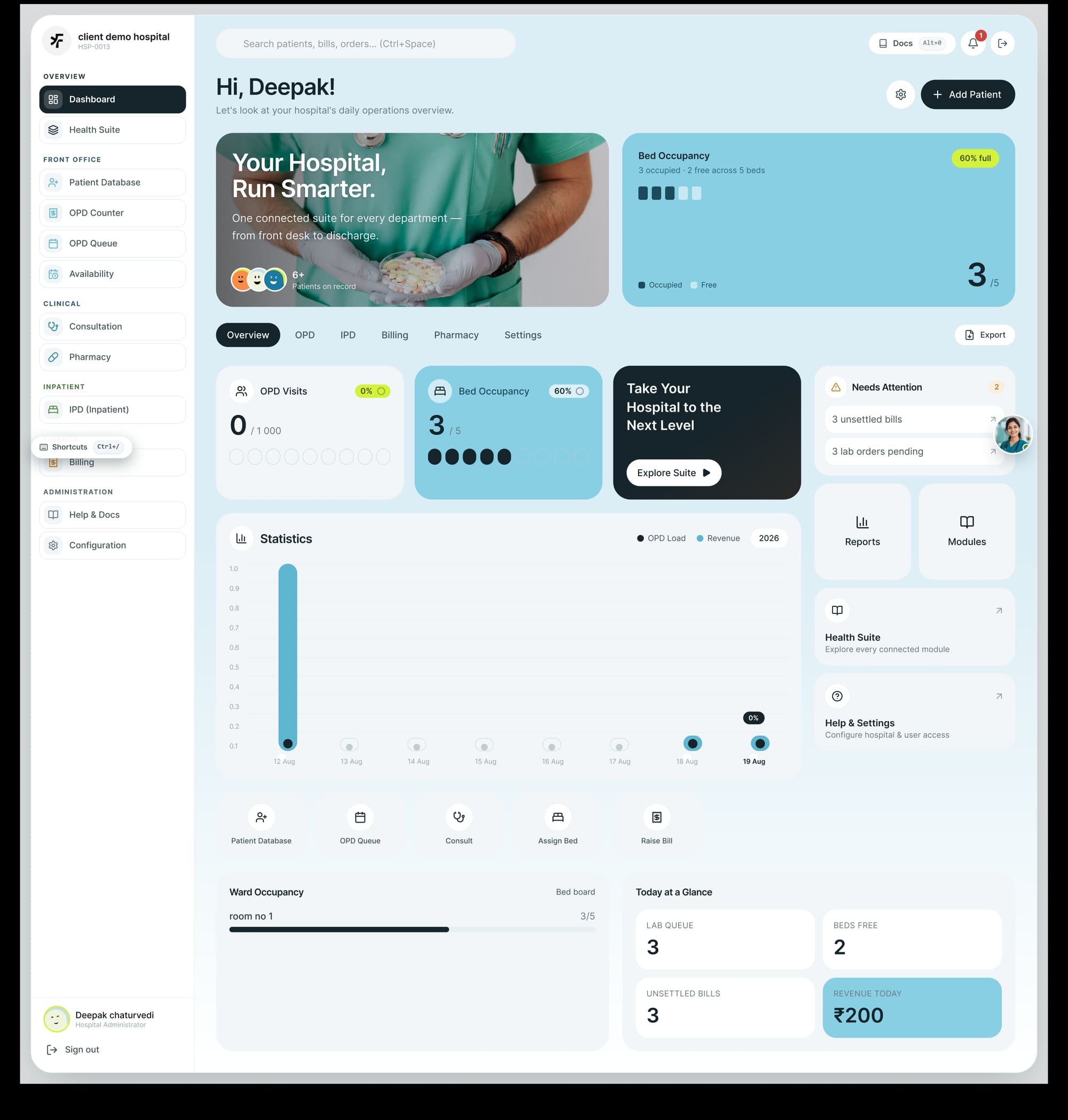

Medara HMIS Operations Dashboard — hospital greeting, bed occupancy tracker (3/5 beds full), module quick filters, key operational statistics, and priority action alerts. — The Medara Operations Dashboard — high-level clinical overview with real-time bed occupancy, search shortcut (Ctrl+Space), department filters, priority alerts, and daily metrics.

02The challenge

Hospital staff operate under intense time pressure and high cognitive load. A nurse checking bed allocations, a doctor writing an encounter prescription, and a billing clerk clearing an OPD slip cannot afford confusing navigation or ambiguous interface states.

Information density without cognitive overload. Clinical data cannot simply be hidden behind hamburgers or deleted to make a screen look “minimal”. Essential patient history, drug allergies, and active vitals must remain instantly scannable.
Many specialized roles, one unified record. Front-desk receptionists, triage nurses, attending physicians, lab technicians, and hospital administrators all work on the same patient with completely different daily tasks.
High-stress environmental constraints. Shared terminals, high ambient glare, noisy ward stations, and frequent mid-task interruptions.

A nurse does not need fewer fields. She needs to know which three of the forty matter right now — allergy, active diagnosis, last vitals. Those three are the only ones set in bold at 16px; the other thirty-seven are 14px and grey.

03The modular architecture

To support hospital-wide operations without disorienting users, Medara organizes its twelve core modules into clearly delineated operational layers with a persistent role-aware navigation rail.

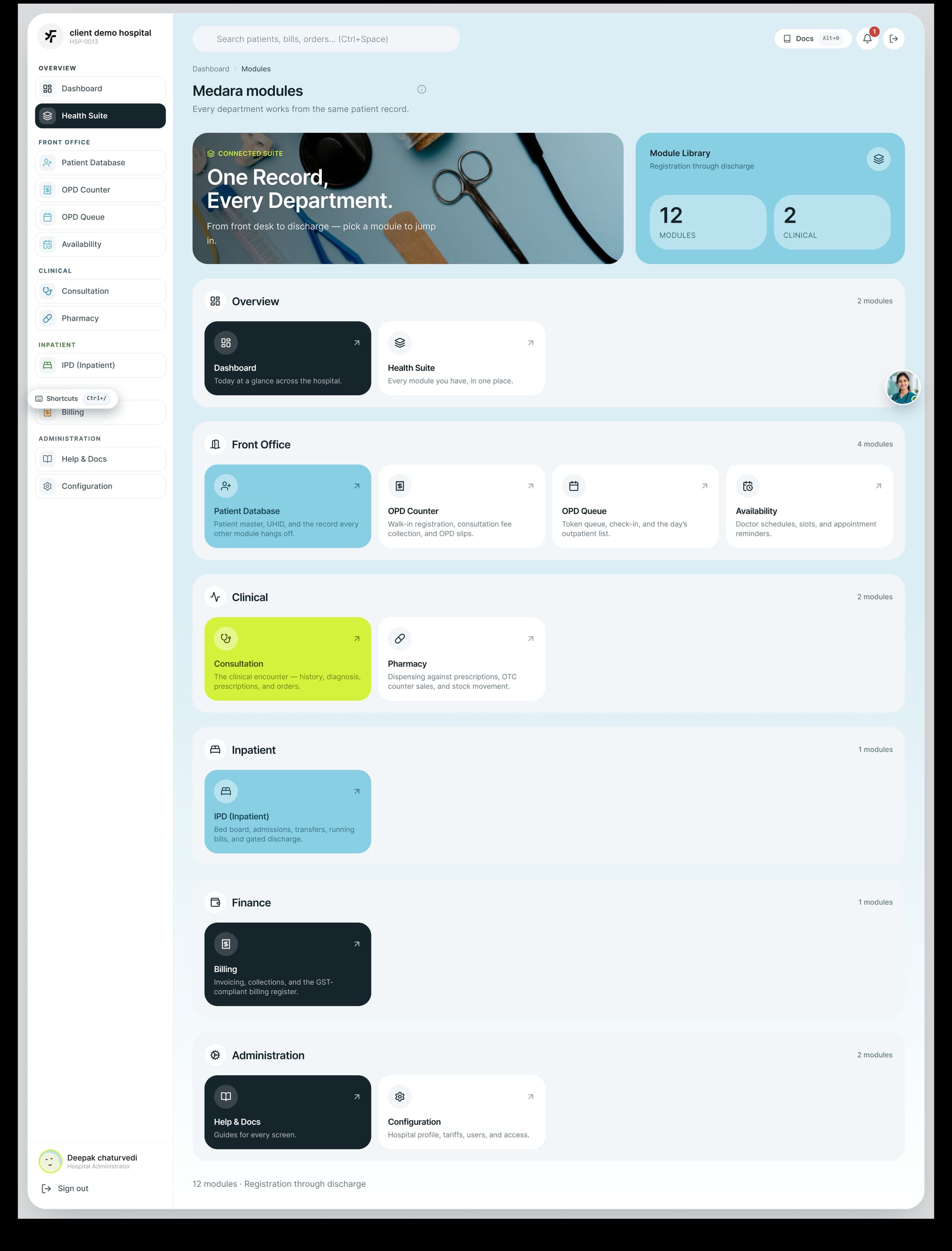

Medara Health Suite Modules Index — Overview, Front Office, Clinical, Inpatient, and Administration modules connected on one master record. — The Health Suite module index — providing direct jumping points to Front Office, Clinical, Inpatient, and Administration workflows.

01. Operations DashboardExecutive overview of hospital census, live bed occupancy (e.g. 60% full / 3 occupied, 2 free), OPD visit volume, and high-priority alerts.

02. Patient DatabaseCentral master registry: UHID search, demographics editing, longitudinal medical history, and encounter tracking.

03. OPD Counter & QueueWalk-in registration, fast consultation fee collection, token generation, and wait-time queue monitoring.

04. Availability & SchedulingDoctor shift rosters, OPD room allocations, duty schedules, and specialty coverage calendar.

05. Clinical ConsultationPhysician encounter surface: chief complaints, diagnosis coding, active problem lists, e-prescriptions, and diagnostic orders.

06. Pharmacy & DispensingPrescription validation, counter sales, batch/expiry alerts, automated drug substitution warnings, and stock movements.

07. IPD (Inpatient & Wards)Admission workflows, ward & bed management, nurse round charting, vitals recording, and discharge clearance.

08. Billing & Fast CashierGlobal keyboard-accessible billing (Ctrl+/), itemized billing summaries, settlement tracking, and refund processing.

09. Laboratory & DiagnosticsSample collection barcodes, automated analyzer integration, reference range validation, and verified report sign-offs.

10. Radiology & PACSImaging study scheduling, DICOM viewer links directly tied to the encounter record, and structured radiological notes.

11. Reports & AnalyticsDaily revenue, department-wise load statistics, bed turnover rate, and statutory NABH quality indicators.

12. Administration & ConfigUser role-based access control (RBAC), audit logs, department configuration, and system documentation.

04Clinical workflow & patient records

The heart of Medara is the longitudinal patient record. When viewing a patient (e.g., Akash Sharma — UHID MH26000006), the interface consolidates all clinical data into a persistent summary card with structured diagnostic tabs.

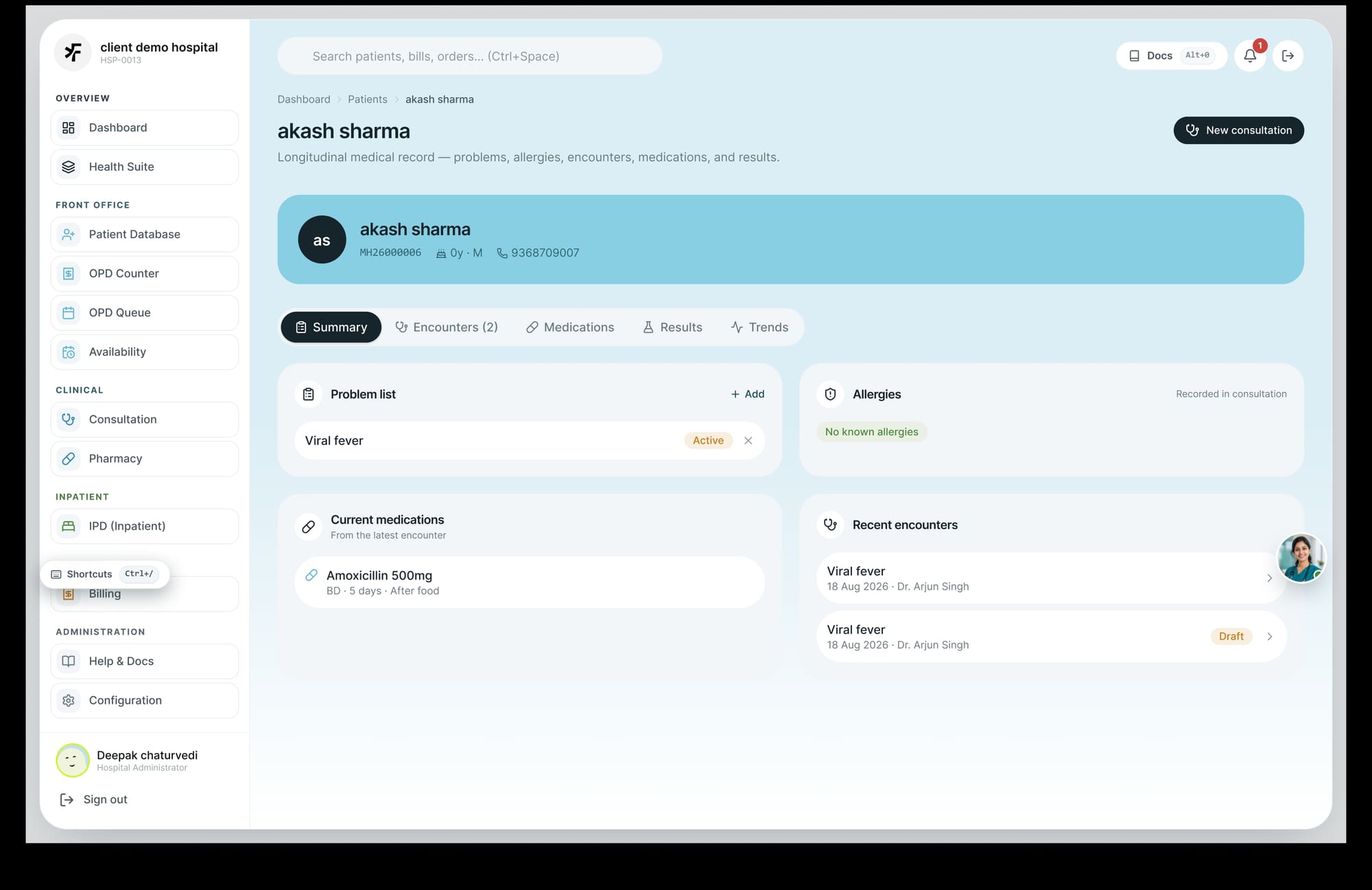

Medara Longitudinal Patient Record — Active problem list, allergy banners, current medications (Amoxicillin 500mg), and recent encounter history. — The Longitudinal Patient Record — allergy banners at the top, active diagnosis summary, medication orders, and chronological clinical encounters.

Patient onboarding and demographic maintenance use focused slide-over modals that validate national identifiers (Aadhaar, ABHA / PMJAY numbers), emergency contacts, and insurance categories without navigating away from the current patient context.

Edit Patient Demographics Modal — quick registration form with structured fields for name, DOB, gender, blood group, mobile number, and address. — Patient Demographics slide-over form — allowing front-desk receptionists to edit contact information, national IDs, and emergency contacts with one click.

05The design system

A rigorous, systematic design language built in Figma to ensure visual consistency, accessibility, and high contrast in demanding clinical settings.

Typography

Primary interface face: Inter — selected for its exceptional legibility, high x-height, and neutral geometry. Supporting monospace: IBM Plex Mono for error-free transcription of patient UHIDs, dosage numbers, and lab values.

AaInter

Inter

Clean, modern, and readable sans-serif optimized for digital healthcare interfaces. Provides clear letter distinction (e.g. cv05 disambiguating “l” from “1” in medication names).

400 / 500 / 600 / 700SemiBold headingsRegular body text

01IBM Plex Mono

IBM Plex Mono

Used for all character-critical clinical identifiers, timestamps, dosages, and monetary figures. Fixed-width tabular digits allow effortless vertical column alignment during quick scanning.

400 / 500slashed zerotabular numerals

Aa32 / Heading 1

Aa24 / Heading 2

Aa20 / Heading 3

Aa16 / Body text

Aa14 / Caption & UI

0112 / Mono meta

Color palette & semantic tokens

The color system is organized around role-based clinical significance. High contrast ensures readability across varied workstation displays.

Primary Navy#112233Sidebar, primary buttons

Medical Blue#3B82F6Active highlights, primary CTAs

Soft Ice#E6EFF8Module background tint

Surface Light#F0F6FCCard containers, table rows

Success / Active#22C55ECompleted status, stable vitals

Pending / Warning#F59E0BPending lab orders, attention

Critical / Alert#EF4444Allergies, emergency alerts

Slate Muted#4E5A69Labels, secondary metadata

Border Line#E2E5E9Hairlines, component dividers

06UI decision records

Every key architectural decision made during the Medara HMIS interface design process.

UI-01

Global patient search as the universal primary action

Context: Clinical staff switch between patients dozens of times per hour across different departments.
Decision: Positioned an omni-search input permanently in the header with a global hotkey (Ctrl+Space) supporting name, UHID, and phone number lookup.
Rationale: Eliminates repetitive navigation and allows instantaneous patient context switching from anywhere in the platform.
Trade-off accepted: Occupies permanent real estate in the top application bar.

UI-02

Visual bed occupancy tracking with color-coded density

Context: Ward administrators need instantaneous clarity on ward capacity without reading through raw tabular logs.
Decision: Created a dedicated Bed Occupancy widget combining numerical fraction (e.g. 3/5), percentage badge (60% full), and a tactile grid representation of occupied vs free beds.
Rationale: Provides instant visual feedback in triage situations and during morning shift handover meetings.
Trade-off accepted: Takes up a prominent card position on the executive dashboard.

UI-03

Triple-encoded clinical status tags

Context: Monitors in hospital corridors and busy nurse stations often suffer from color distortion and glare.
Decision: Every status tag combines color, a filled geometric indicator dot, and explicit uppercase text (e.g. ● Completed, ● In Progress, ● Pending, ● Cancelled).
Rationale: Guarantees instant comprehension for color-blind users and under severe glare or monochrome printouts.
Trade-off accepted: Requires slightly more horizontal space inside tables and cards.

UI-04

Persistent action shortcuts for high-velocity tasks

Context: Reception and cashier staff handle hundreds of billing and patient entries per shift.
Decision: Embedded dedicated shortcuts in the navigation rail (Billing Ctrl+/, Docs Alt+0, + Add Patient) for pure keyboard operation.
Rationale: A keyboard path removes the pointer round-trip between the navigation rail, the form and the submit button — three moves a cashier repeats hundreds of times a shift. The saving is per-repetition, which is where it compounds. I have not timed it against the current system; a stopwatch comparison across twenty check-ins is the first thing I would measure.
Trade-off accepted: Requires staff to learn keyboard shortcuts during initial onboarding.

07Outcome & impact

The comprehensive design system and interface specification enabled rapid development and streamlined hospital operations:

12: modules specified on one longitudinal patient record
04: surfaces designed to high fidelity — dashboard, module index, patient record, demographics slide-over
03: clicks from any screen to a new OPD encounter — counted in the prototype

Unified twelve distinct operational departments under a single intuitive navigation architecture.
Eliminated fragmented paperwork with a real-time longitudinal patient record.
Provided hospital management with actionable operational visibility through live occupancy, visit load, and revenue analytics.

Scope and attribution: my scope was workflow research, information architecture, the design system and high-fidelity UI. Engineering, clinical content and module requirements were produced with the TechFrien team. The figures above describe the design as specified, not measured outcomes in a live deployment.

08What I would do next

Conduct contextual inquiry and timed usability testing with night-shift nursing staff.
Introduce an optimized high-contrast dark theme for low-light intensive care units (ICU) and radiology reading rooms.
Design voice-to-text clinical dictation workflows for doctor consultation notes.
Extend the design system to mobile companion apps for attending doctors on rounds.
